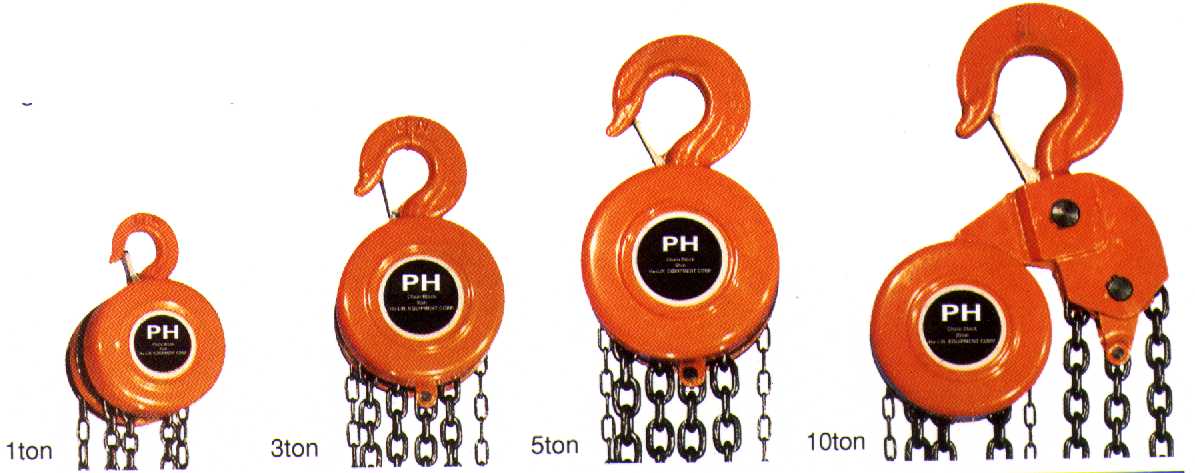

| PH CHAIN BLOCK |
Compact design,all steel construction,light handpull
Heat treated low-wear,corrosive resistant chain
Drop-forged hook designed to bend slowly to warn of overloads
|
 |
| Model | CB05 | CB10 | CB15 | CB20 | CB25 | CB30 | CB50 | CB100 | CB200 | |||||||||
| Capacity(ton) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | 10 | 20 | |||||||||
| Standard Lifting Height (m) | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 3 | 5 | 3 | 5 | 3 | 3 | 3 | 5 |
| Test Load (KN) | 7.5 | 15 | 22.5 | 30 | 37.5 | 45 | 62.5 | 125 | 250 | |||||||||
| Headroom H (min) (mm) | 280 | 300 | 360 | 380 | 420 | 470 | 600 | 730 | 1000 | |||||||||
| Chain Pull to Capacity(N) | 160 | 310 | 360 | 320 | 390 | 360 | 390 | 400 | 400 | |||||||||
| No. of Chain Falls | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 4 | 8 | |||||||||
| Diameter of Load Chain(mm) | dia6 | dia6 | dia8 | dia6 | dia10 | dia8 | dia10 | dia10 | dia10 | |||||||||

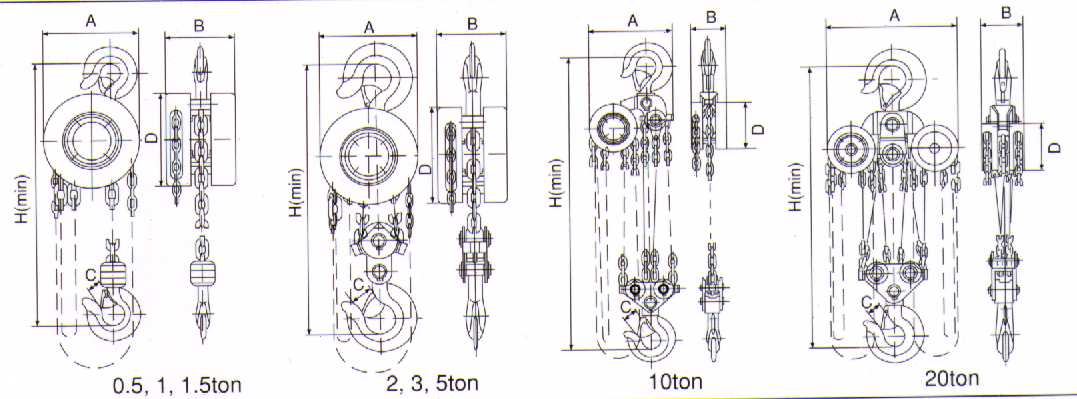

| Dimensions (mm) A | 142 | 142 | 178 | 142 | 210 | 178 | 210 | 358 | 580 | |||||||||
| B | 122 | 122 | 139 | 122 | 162 | 139 | 162 | 162 | 189 | |||||||||
| C | 24 | 28 | 32 | 34 | 36 | 38 | 48 | 62 | 82 | |||||||||
| D | 142 | 142 | 178 | 142 | 210 | 178 | 210 | 358 | 580 | |||||||||
| Net Weight (kg) | 9.5 | 10.5 | 10 | 11 | 15 | 16 | 14 | 15.5 | 28 | 30 | 24 | 32 | 36 | 47 | 68 | 88 | 150 | 189 |

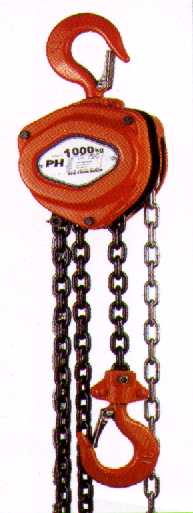

| PH CHAIN BLOCK |
 |
 |
| Model | CB05C | CB10C | CB15C | CB20C | CB30C | CB30C |
| Capacity(ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Lift (meter) | 3 | 3 | 3 | 3 | 3 | 3 |
| Test Load (ton) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 |
| Headroom(hook to Hook)H(min)(mm) | 280 | 335 | 410 | 440 | 480 | 600 |
| Chain Pull to Lift Full Load (N) | 160 | 314 | 363 | 324 | 333 | 412 |
| No. of Load Chain Fall Lines | 1 | 1 | 1 | 2 | 2 | 2 |
| Diameter of Load Chain (mm) | dia6 | dia6 | dia8 | dia6 | dia8 | dia10 |

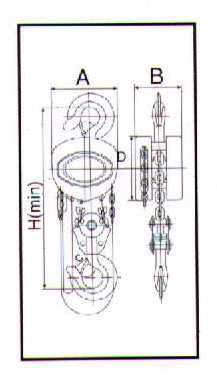

| Diamensions (mm) A | 142 | 142 | 178 | 142 | 178 | 210 |
| B | 126 | 126 | 142 | 126 | 142 | 165 |
| C | 142 | 142 | 178 | 142 | 178 | 210 |
| D | 18 | 22 | 28 | 27 | 34 | 44 |
| Net Weight (kg) | 10 | 11 | 17 | 16 | 25 | 38 |
